Tapio 600 EXS stroke harvesting head

Product menu

Technical specification

Length x width x height

 1650 x 800 x 700 mm

Weight

 550 kg

Electric system

 12/24 Vdc
Saw blade  22" 2.0 mm
Saw chain  .404" 2.0 mm
Pump/pressure 1500r/min  120 l/min  160 bar
Stroke length 1000 mm
Stroke speed  1 m / sec
Stroke power 31.4 kN
Maximum cutting diameter  550 mm
Minimum delimbing diameter  450 mm
Harvester output  38 kW




Tapio 600EXS harvesting head standard equipment:

Following additional valves have been mounted into the harvesting head:

           Hydraulic valve for rotator

           Hydraulic valve for felling cylinder



Measuring device Logger

Including:

- connection module to the cabin

- grapple module

- display of measuring device

- rack for display

Length measuring wheel

Saw bar .404-2.0 22”

Saw chain .404-2.0 74

Push button box right

Push button box left

Push button box holders

Pre-selection switch module

2x0,75 +2x1+2x2 boom cable from connection module of the cabin to the grapple module in harvesting head

Owners manual for Tapio 600

Owners manual for Logger



Additional equipment:

Diameter sensor

Seiko printer DPU-414

Mounting supervision

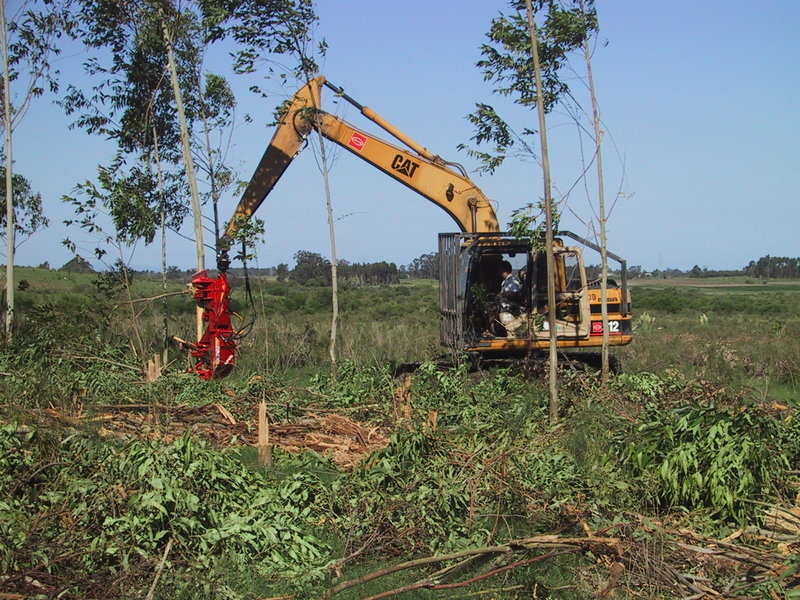

Base machine options:

Excavators of 8-16 tons
